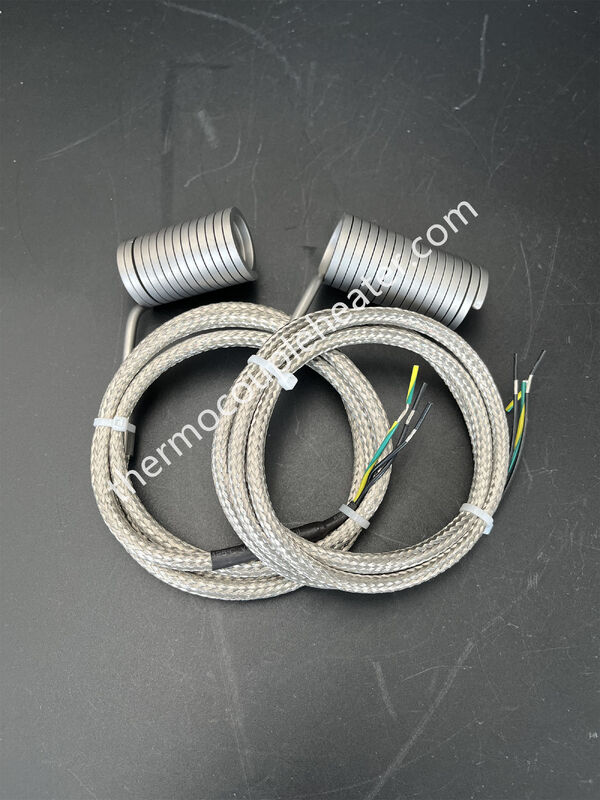

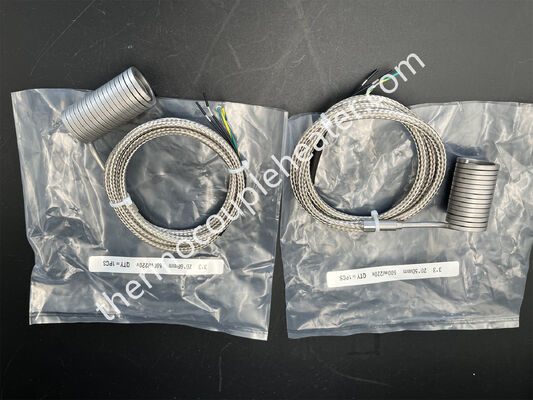

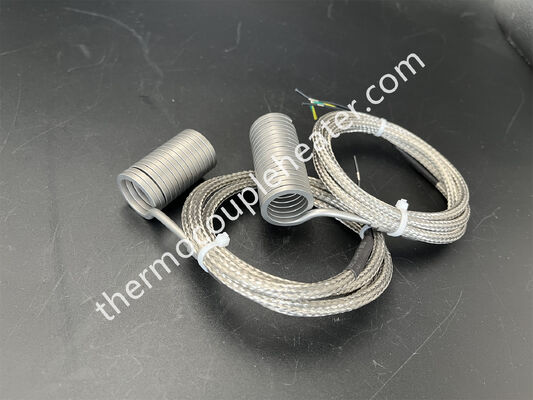

Industry Heating Spring Coil nozzle Heater for Hot Runner system Heater
Description:
1) GME specializes in manufacturing all kinds of electric heating elements. We have our own patent in cartridge heaters. We also have been certificated by ISO9001and CE in coil heaters, band heaters and immersion tubular heaters.
2) We provide Mica Nozzle Heaters, Ceramic Heaters, and boiler heater. We provide OEM service for customers all over the world and customize electric heating elements as required. If you are interested in our products, welcome to our website www.thermocoupleheater.com. Please contact me.
3) GME's heater :
Adopt imported high-purity Mgo, to ensure excellent heat conduction and electrical property.
Applicable to injection mold with high productivity and requirement.
Adopt accurate processing equipment and advanced manufacturing technology. Our hot runner heaters are all deal with 1050ºC heat treatment, thus will be able to fit various molding and bending of different shapes.
Specification:
CONNECTION LEADS OPTION
1. PTFE insulated nickel lead protected with thick silicone coated fiberglass sleeve
2. PTFE insulated nickel lead protected with stainless steel metal hose
3. PTFE insulated nickel lead protected with flexible stainless steel metal braid
4. PTFE insulated nickel lead protection
| Sheath Material |
Cr Ni-Steel |
| Insulation Material |
MgO |
| Resistance Wire |
Ni Cr 80-20 |
| Maximum Sheath Temperature |
700°C |
| Die Electrical Strength |
800V A/C |
| Insulation |
> 5 M W |
| Thermocouple |
J type (Standard) or K type |
| Length Tolerance (Straight) |
5% |
| Wattage Tolerance |
+ 10% (+ 5% Available Upon Request) |
| Resistance Tolerance |
+ 10% (+ 5% Available Upon Request) |
| Unheated Length |
35mm (Standard) |
| Dimensional Tolerance |
Coil I.D + 0.1 to 0.2mm |
| Coil Length + 1mm |
|
Product item/ cross section:
DS1(round with single head): Φ1.6, Φ1.8, Φ2.0, Φ3.0, Φ3.3, Φ3.8, Φ5.0
DS2 (square with single head): 1.5*2.1, 1.7*3.5, 2*4, 2.2*4.2, 2.7*4.5, 4.2*6.5
DS3 (square with single head): 3*3, 3.5*3.5, 4*4
SS1 (round with two heads): Φ1.6-5.0, Φ6.6, Φ8.0, Φ8.5, Φ10.0
SS2 (square with two heads): 6*6, 8*8
Application:
1. Injection moulding machine nozzle
2. Hot Runner Nozzles & Bushings.
3. Packaging machineries
4. Hot runner Injection moulds.
5. Injection & Blow Moulding Machine Nozzles.
6. PET prefrom & Thin wall container Moulds
7. Hot runner Manifolds.
